Stainless Steel Shaped Wire
JIANGSU STEEL GROUP Inquiries :
Quick Detail:
1. Commodity: Stainless Steel Shaped Wire
2. Grade:201/301/304/316 .etc
3. Certification: ISO,SGS BV
4. Type: Cold Drawn,Hot Rolled
5. Specification: Diameter(Φ0.2mm-Φ6mm)
6. Length: as customer's requirement
7. Standard: ASTM、GB、JIS.etc
8.Delivery Time: According to your size and quantity or as require
9.Payment term:T/T, L/C
Grade for Stainless Steel Shaped Wire
Chemical Composition | 201 | 304 | 316 |
C | ≤0.15 | ≤0.08 | ≤0.08 |
Si | ≤1.00 | ≤1.00 | ≤1.00 |
Mn | 5.5-7.5 | ≤2.00 | ≤2.00 |
S | ≤0.03 | ≤0.03 | ≤0.03 |
P | ≤0.06 | ≤0.045 | ≤0.45 |
Cr | 16.0-18.0 | 18.0-20.0 | 16.0-18.0 |
Ni | 3.5-5.5 | 8.0-11.0 | 10.0-14.0 |
Mo |
|
| 2.0-3.0 |
N | ≤0.25 |
|
|
Application
For example, square (or trapezoid) steel wire for mechanical spring and washer, high-grade carburetor and piston ring steel wire for automobile and motorcycle, large-scale flat steel wire for window regulator and seat angle adjuster, needle cloth steel wire for textile industry, spring steel wire for children's toys and watches, high-strength low relaxation flat steel wire for 10000 ton press winding, other special alloy special-shaped steel wire for aerospace and military industry.

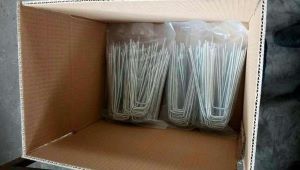

Packages

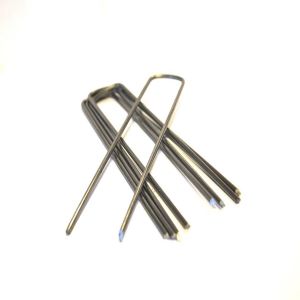

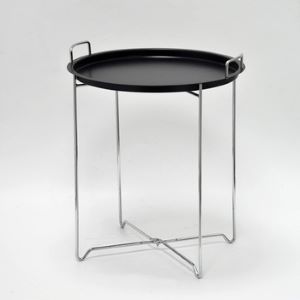

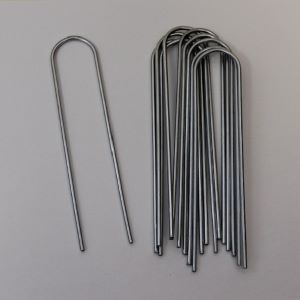

Usage photos
