Stainless Steel Plate
JIANGSU STEEL GROUP Inquiries : 1151
1. Commodity: Stainless steel plate
2. Grade:200/300/400 Series
3. Type:Hot Rolled/Cold Rolled
4. Certification:ISO
5. Surface:2B/BA/No.4/No.1/HL/Mirror etc.
6. Thickness:As your requests
7. Width:As your requests
8. Length: As your requests
9. Standard:JIS,AISI,ASTM,GB,DIN and EN
10.Delievery Time:According to your size and quantity or as require
11.Payment term:TT/ LC
12. Application：Waste water treatment, food processing, high vacuum, pharmaceutical etc.
Chemical Composition | 304 | 304L | 316 | 316L |
C | ≤0.07 | ≤0.030 | ≤0.08 | ≤0.030 |
Si | ≤0.75 | ≤1.00 | ≤1.00 | ≤1.00 |
Mn | ≤2.00 | ≤2.00 | ≤2.00 | ≤2.00 |
S | ≤0.030 | ≤0.030 | ≤0.030 | ≤0.030 |
P | ≤0.045 | ≤0.045 | ≤0.045 | ≤0.045 |
Cr | 17.5-19.5 | 18.0-20.0 | 16.0-18.0 | 16.0-18.0 |
Ni | 8.0-10.5 | 9.0-12.0 | 10.0-14.0 | 10.0-14.0 |
Mo | -- | -- | 2.0-3.0 | 2.0-3.0 |
Grade for Stainless steel coil
Mechanical Property | ||||
Material Item | 304 | 304L | 316 | 316L |
Tensile Strength | ≥520 | ≥480 | ≥520 | ≥480 |
Yield Strength | ≥205 | ≥175 | ≥205 | ≥175 |
Extension | ≥40% | ≥40% | ≥40% | ≥40% |
Hardness(HV) | <200 | <200 | <200 | <200 |

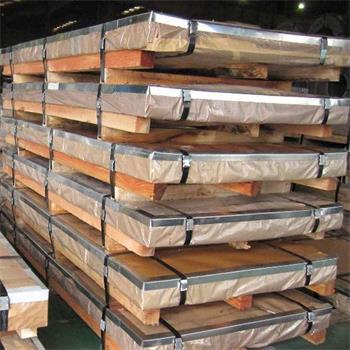

Packing style：

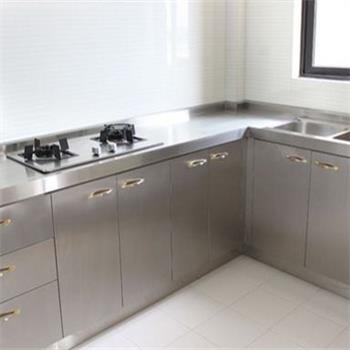

Usage photo:
