446 Stainless Steel Pipe

The grade 446 stainless steel is a ferritic, non-heat treatable stainless steel that provides good resistance to high temperature oxidation and corrosion. The following data sheet provides more details of grade 446 stainless steel.

 Standard:   ASTM/ASME  A/SA 268
 Material:   TP446 SUS446  AISI446 UNS S44600 1.4762
 Nominal Dia: 1/2 "to 8" NB for seamless pipe
 Schedules: 5S, 10S, 40S, 80S, 10, 20, 30...120, 140, 160, XXS
 All dimensions are in accordance with ANSI B36.19 and ANSI B36.10
 Size Range for tubing: OD:1/4" (6.25mm) to 8" (203mm), WT 0.02" (0.5mm) to 0.5"(12mm)
 Length: 30 m(Max) or as your requirement
 Process:  Cold drawn, Cold rolled, Precision Rolled for Seamless Pipe or Tube
 Finish:  Annealed & pickled, bright annealing, polished
 Ends:  Beveled or plain end, square cut, burr free ,Plastic Cap at Both end

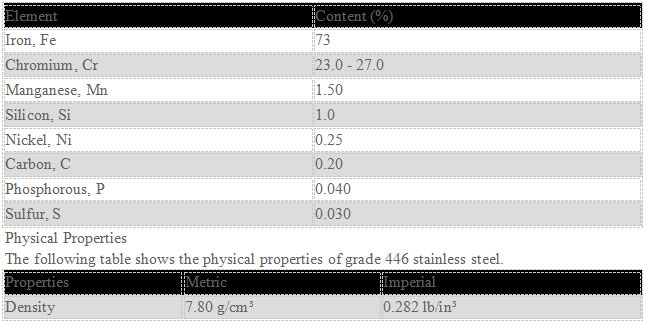

Chemical Composition:
 The chemical composition of grade 446 stainless steel is outlined in the following table.

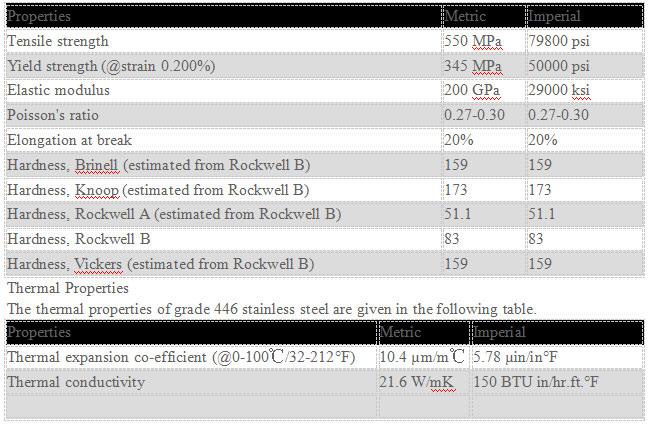

Mechanical Properties:
 The mechanical properties of grade 446 stainless steel are displayed in the following table.
