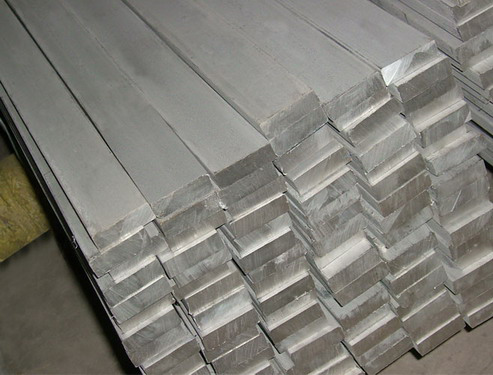

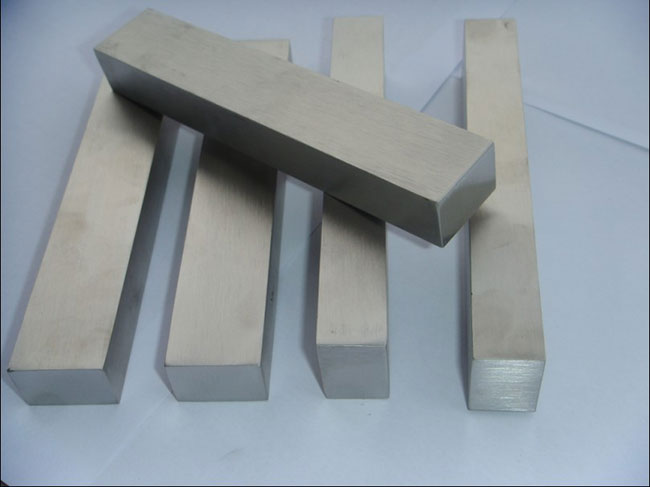

Stainless Steel Flat Bar

Inquiries : 153 - 2014/2/23 19:34:08

General Introduction of Stainless Steel Flat Bar

   Grade: 201, 202, 303, 304, 304L, 316, 316L, 321, 430, 431, 410, 416, 420 etc.

      Standard: ASTM A484, A246, A 582, GB704, GB5215.

      Length Tolerance of Flat Steel in Cut - length or multiple length should be in accordance with

      Length ¡Ü 4m........................................0~ +30mm

      Length > 4m ~ 6m.............................0~ +50mm

      Length > 6m.............................0~ +70mm



Bending of flat steel

      General Level: Max bending is 4mm/m, whole body's Max bend is 0.40% length.

      Senior Level: Max bending is 2.5mm/m, whole body's Max bend is 0.25% length.

      Un-Vertical of Cross- section is as picture (a)¡¢(b)¡¢(c)¡¢(d), the Max Allowable  Size(C) should be in accordance with

      Thickness ¡Ü 5mm, C ¡Ü 1mm

      Thickness > 5mm ~ 10mm, C ¡Ü 20% thickness

      Thickness >10mm, C ¡Ü 15% thickness, Max C is 3.5mm


 Usage: Bars,Public facilities,construction and etc.




2. Chemical composition of 304 stainless steel plate :

C

Mn

P

S

Si

Cr

Ni

Mo

N

Cu.

0.07

1.78

0.039

0.01

0.75

18.3-18.9

8.0¡«8.7

--

--

--

3. About Packing

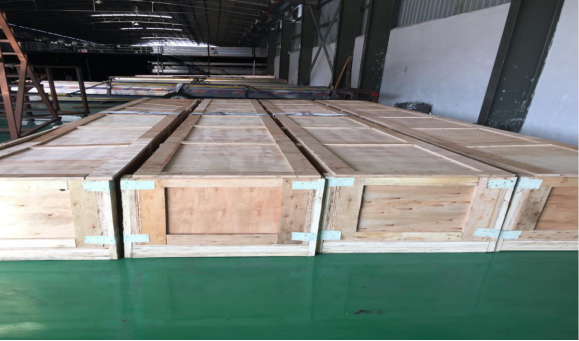

A. wood packing

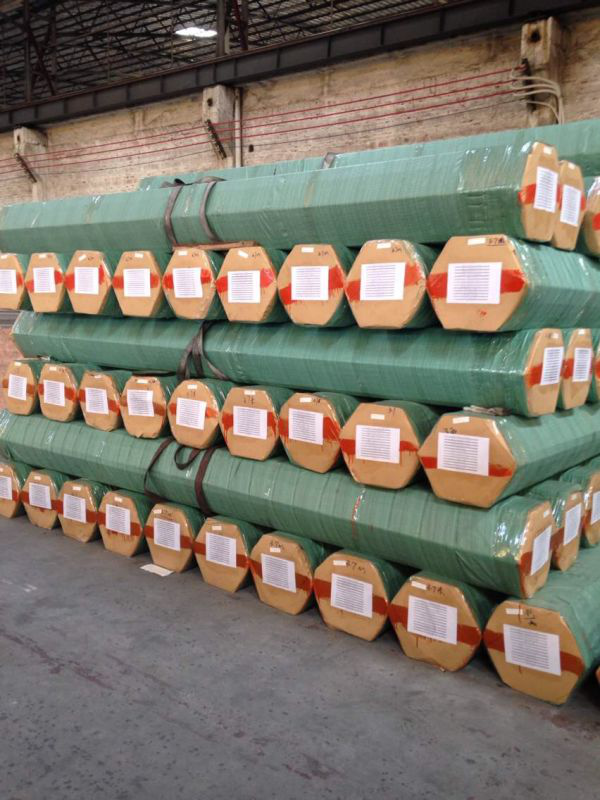

B. Woven bag packaging


Product Usage

Stainless Steel Bar (Round Bar, Hexagon Bar, Square Bar) Widely Used in the areas such as Stainless Steel Fasteners, Chains,Kitchen and Sanitary wares, Furniture handles, Handrails, Electroplating and Electrolyzing pendants, Foods, Electron, Petroleum,Construction and Decoration, etc. Products have a high strength after cold- working. Electronic products parts, Medical appliances, Springs, Bus Inside and Outside packaging and building, Street Lamp Posts, etc. Decoration materials and Outdoor Publicity Billboard. Used for the products which have the Anti- Stress Corrosion requirement. Electron Products, Table-wares, Bolts, Nuts, Screen Mesh, Burner and so on.
