Stainless Steel Channel Bar
JIANGSU STEEL GROUP Inquiries :
Quick Detail:
1. Commodity: Stainless Steel Channel Bar
2. Grade:201/202/316L/316/304.etc
3. Certification: ISO
4. Surface: Hot Rolled,Pickled,Polished,Sand Blasting,Hairline
5. Thickness: As your requests
6. Length: 6-12m
7. Standard: ASTM、GB、JIS.etc
8.Delivery Time: According to your size and quantity or as require
9.Payment term:T/T, L/C
Grade for Stainless steel channel bar
Chemical Composition | 304 | 304L | 316 | 316L |
C | ≤0.07 | ≤0.030 | ≤0.08 | ≤0.030 |
Si | ≤0.75 | ≤1.00 | ≤1.00 | ≤1.00 |
Mn | ≤2.00 | ≤2.00 | ≤2.00 | ≤2.00 |
S | ≤0.030 | ≤0.030 | ≤0.030 | ≤0.030 |
P | ≤0.045 | ≤0.045 | ≤0.045 | ≤0.045 |
Cr | 17.5-19.5 | 18.0-20.0 | 16.0-18.0 | 16.0-18.0 |
Ni | 8.0-10.5 | 9.0-12.0 | 10.0-14.0 | 10.0-14.0 |
Mo | 2.0-3.0 | 2.0-3.0 |
Mechanical Property | ||||
Material Item | 304 | 304L | 316 | 316L |
Tensile Strength | ≥520 | ≥480 | ≥520 | ≥480 |
Yield Strength | ≥205 | ≥175 | ≥205 | ≥175 |
Extension | ≥40% | ≥40% | ≥40% | ≥40% |
Hardness(HV) | <200<> | <200<> | <200<> | <200<> |
2.Application
Stainless steel channel bars are widely used for engineering structures,industrial tools,auto parts,building construction etc.
3.Packages

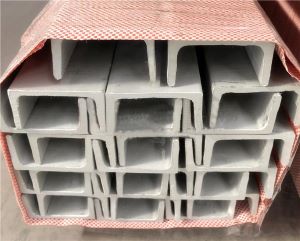

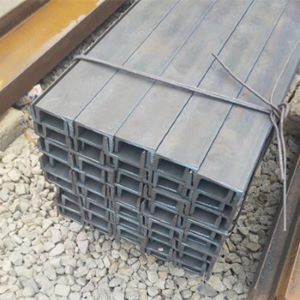

1.Common Standard Export-sea Packing:Each bundle is fixed at least three times strips,wrapped with durable PVC material.
2.Special packing:Covered with film and packed in wooden box.

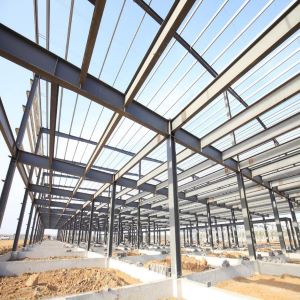

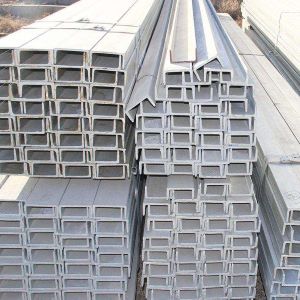

4.Usage photos
