Stainless Steel Tiny Wire

Inquiries : 27 - 2014-2-24 18:09:58

Stainless Steel Tiny Wire

Price:1000 USD/TON ~ 6033 USD/TON

Function & Characteristic


Grade: 300 Series

Wire Gauge: 0.08mm-0.7mm

Length: Customized

Application: hose, filtration equipment, spring, etc.

Certification: SGS

chemical element C< 0.08%, Mn<2.00%, P<0.045%, S<0.030%,  Si < 1.00% Cr:17.0%~19.0%, Ni:8.0%~12.0%, N<0.10%<>

Place of Origin: Jiangsu, China (Mainland)

Brand Name: HD

Model Number: TZHD130412ss wire

Surface finish: Bright Anealed

Alias: stainless steel 304 bright wire


bright annealed stainless steel wire
App:  Elogateed wire, weaving mesh, the flame of kitchenware, wire ropes, etc.

304 bright soft annealed stainless steel wire

Stainless steel Bright Annealing, in metallurgy and materials science, is a heat treatment where in a material is altered, causing changes in its properties such as strength and hardness. It is a process that produceds conditions by heating to above the recrystallization temperature and maintaining a suitable termperature, and then cooling. Annealing is used to induce ductility, soften material, relieve internal stresses, refine the struture by making it homogeneous, and improve cold working properties. But usually, annealing is not the final purpose. Furthermore, it depends on different metal casting. Compared with Normalization, the later has advantages such as operate easily, short production period, few energy costs. So, if possible, we should consider to use Normalization firstly.

Production Usage:

Used for:

1. weaving mesh,

2. hose;

3. the flame of kitchen ware,

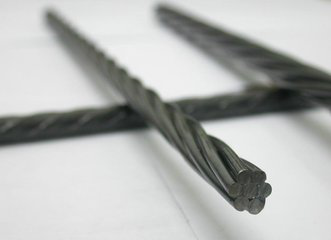

4. wire ropes,

5. filtration equipment,

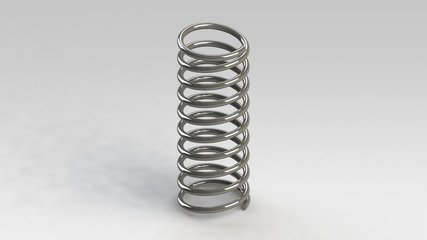

6. steel strand, spring, etc.

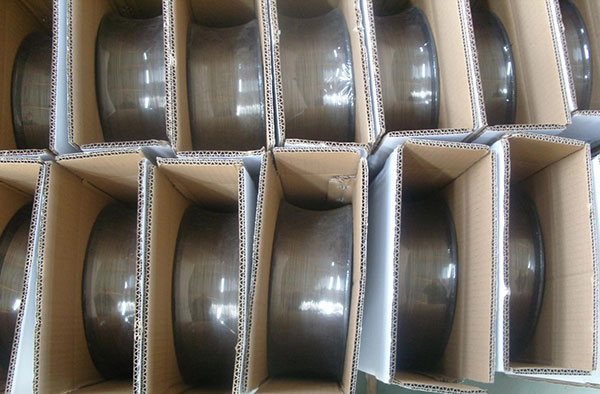

0.08-0.7mm stainless steel wires can use plastic spool(drum).

Specifications of the plastic spools(drum) are as follows:

DIN125, Net Weight of one full spool is around 2kg. Every 16 plastic spools(drums) one carton.

DIN160,Net weight of  one full spool is around 5kg. Every 4 plastic spools(drums) one carton.

DIN200, Net Weight of one full spool is around 10kg. Every 4 plastic spools(drums) one carton.

DIN250,Net weight of  one full spool is around 15kg. Every 2 plastic spools(drums) one carton.

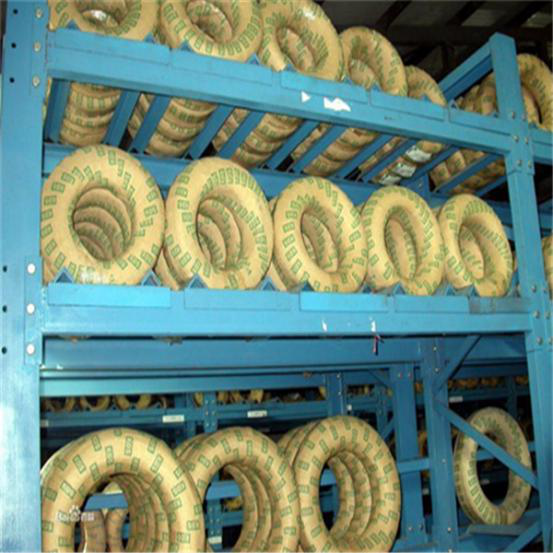

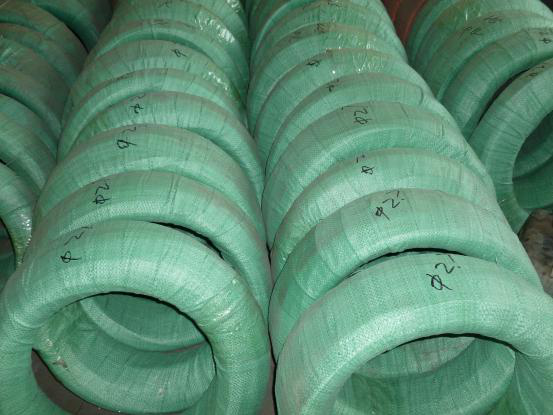

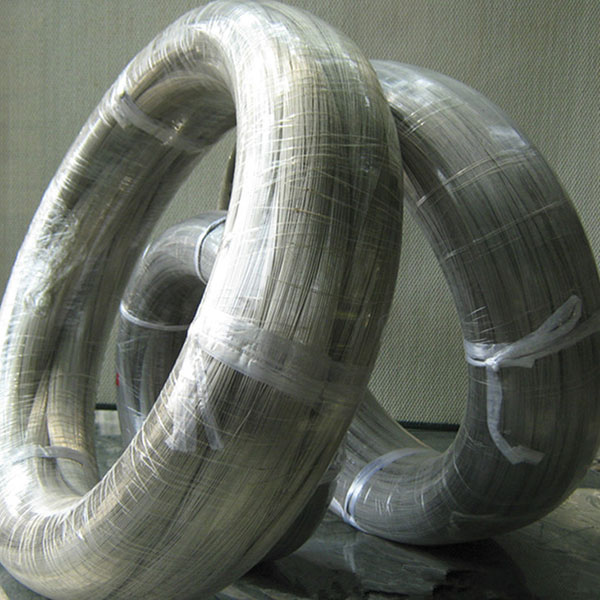

0.60-12mm stainless steel wire can use coil packing, inner diameter is 400mm, 500mm, 600mm, 650mm. Per package weight is 30-80kg. Wrap films inside and outside.

/* */
